Ladder Type Cable Tray

Ladder type cable tray systems consists of two longitudinal side members connected by individual transverse members, and is designed for use as a power cable or control cable support system.

Description

Type-1

Type-2

Cable ladder trays have side rails with rungs to route and support cable. The rungs allow cable to enter and exit anywhere along the span, and they facilitate future changes. These trays also provide free air flow to prevent overheating, which could damage the cable. They mount overhead or under floors, and they’re often used in whole-facility installations with large diameter cable in long spans. Cable ladder trays install as systems, with straight sections, fittings, and accessories connecting to form a pathway.

Basic info.

SurfaceGI, PC, HDG, SS304, SS316L, etc.Lead Time10-20 days
OriginNingbo ChinaCustomizationAvailable
Transport PackagePallet PackagingMaterialCarbon Steel, Stainless Steel, Cold-rolled steel, Aluminum alloy

Accessories

Aluminum Cable Ladder

Z-Type kit

Ω-Type hanging kit

Aluminium connector kit

LDD fixing kit

LDD embedded fixing kit

Main beam hanger (up)

Main beam support (down)

Main beam hanger kit (U)

Other Cable Ladder

90° Horizontal Elbow

Horizontal Tee

Horizontal Cross

90° Vertical Down Elbow

90° Vertical Up Elbow

Reducer

Cover

Connector

End Cap

Divider

Cover Clip

Cover Clamp

Cantilever Arm

Trapeze Bracket

Hanging Support

Floor Stand

Prouduct Features

1. You can save the energy industry and property costs since the wire steps have increased Ladder Type Cable Tray fill compared to other installation methods.

2. There’s an increase in wire ampacity because the cable ladder has full air-conditioning that provide big savings in the costs of the driver.

3. Ladder type cable tray holds less space rather allows greater spacing between the rod hangers, requiring less labor related to similar cable and wire method.

4. Ladder type cable tray has up to three meters of living spans that save labor and supply maintenance costs.

5. Metal made cable ladders may be also utilized as ground wire equipment.

Prouduct Application

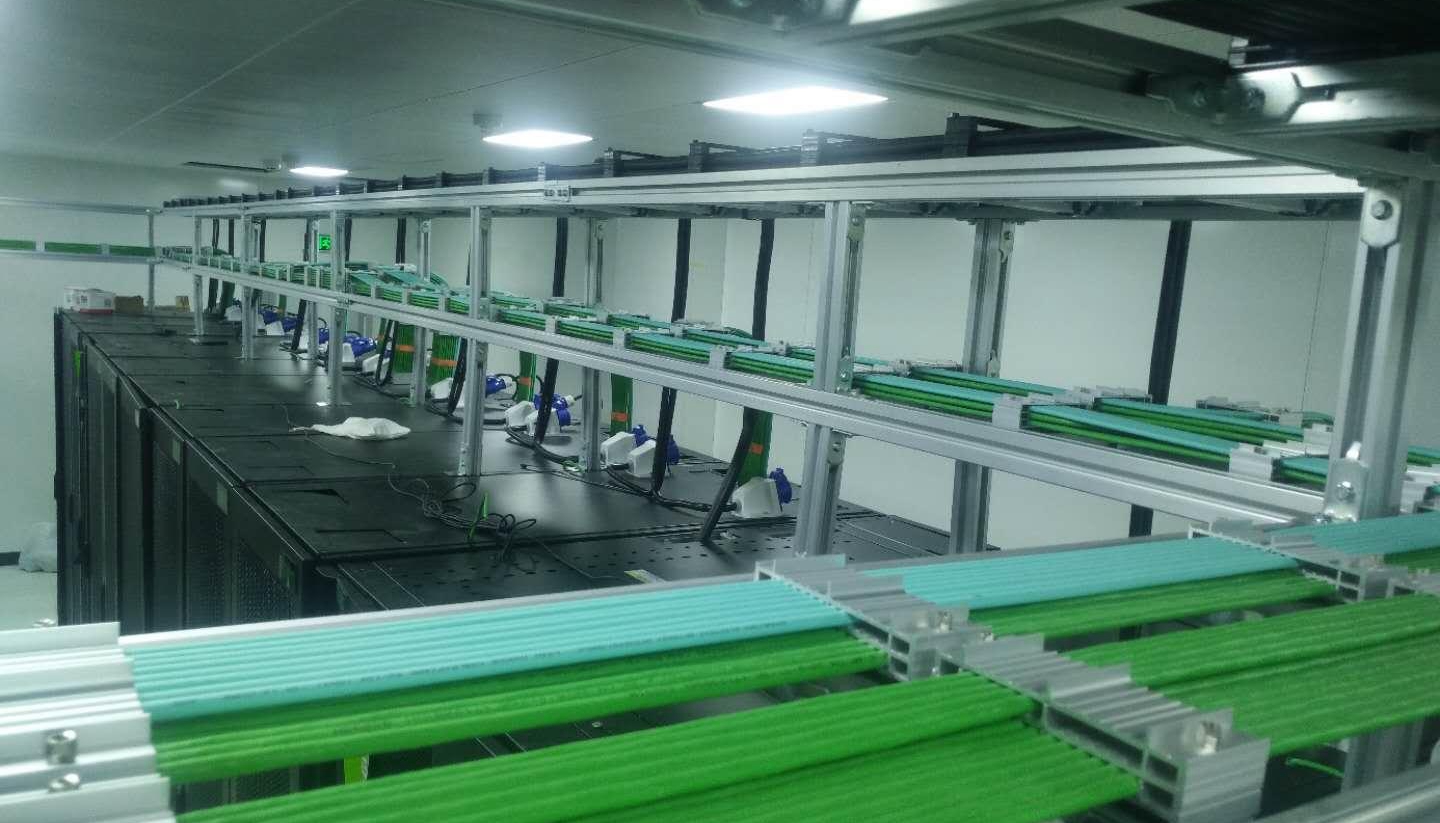

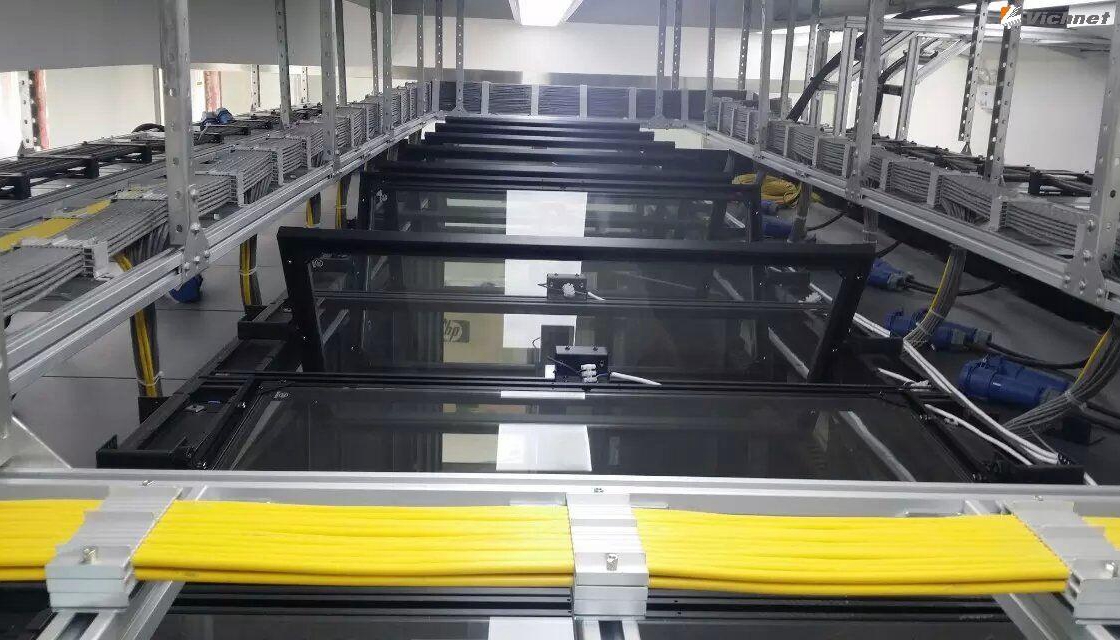

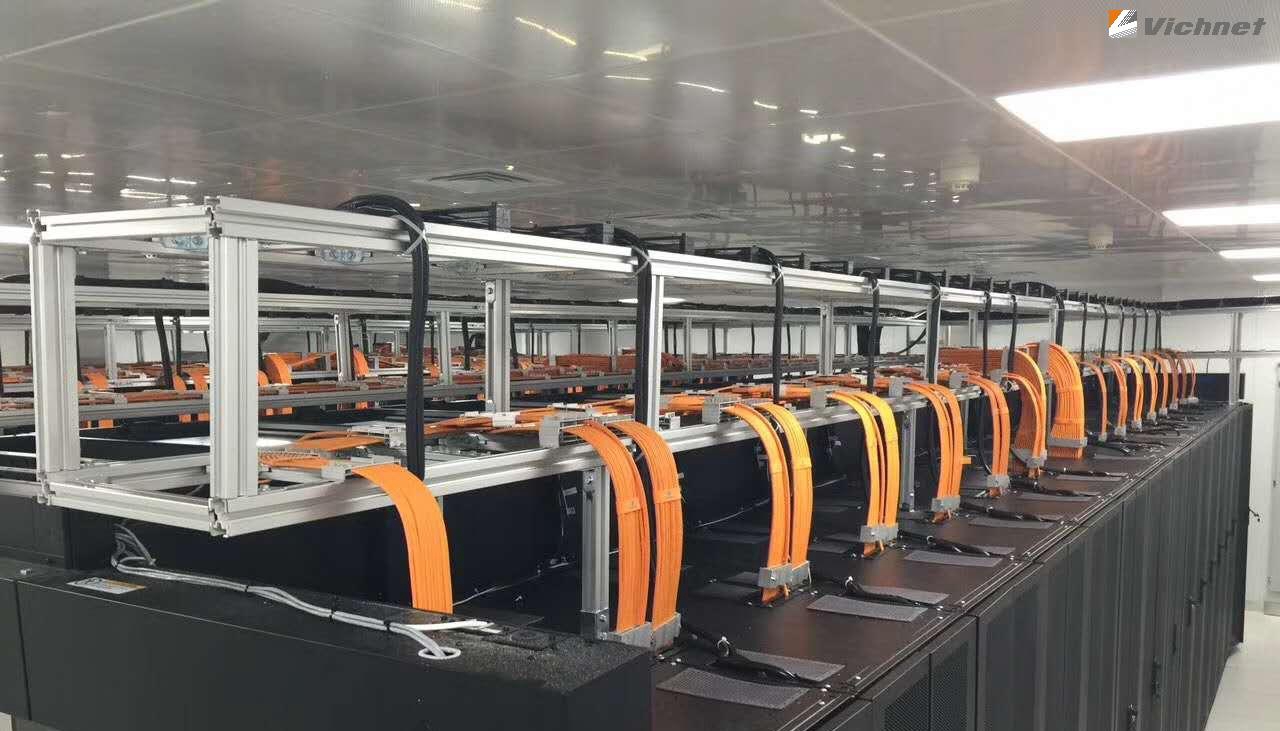

Our products can be used in data center, industrial protection, etc.

Company Profile

Quality Control

Employee stock ownship and factory outlet mode make the products qualified.

Innovation

We have our own dedicated R&D department, which in conjunction with the other departments constantly works to optimize our products and system solutions.

Acessory Processing

We are advantaged in metal products processing to support you project.

Packing

Double layers film wrapped and with four corners card boar wrapped (For stainless steel tray ande LCL shipping.

Frequently Asked Questions

A: We are Ningbo Vichnet Technology Co.,Ltd (factory) established in 2006.

As a national high-tech enterprise, Vichnet specializes to innovation, manufacturing and sales of intelligent safety protection system. (Vichnet are Specialized in cable tray and machine guard.)

We are committed to innovation to provide the safe, environmental-friendly, efficient and beautiful professional wiring scheme for customers in different industries.

A: Our company is a factory integrating production and sales. We can provide competitive prices and services.

A: You just need to contact with our salesman and tell her/him about your idea. Surely a favorable price is available.

A: 30% T/T in advance 70% T/T after received the copy of BL.

L/C, D/P, D/A, Money Gram, Credit Card, PayPal, Western Union, Cash, Escrow.

A: We have obtained the Product certificates such as UL, CUL, CE, E90, Rosh etc and Management System Certificates Which is approbatory by GMC (China quality supplier) including ISO9001, IS045001 and ISO14001.

A: Our normal delivery time is about 10 ~15 days. Meanwhile, if there are any changes about it, then we will contact with you.

A: The normal shipping method is the sea shipment. And we also support the other shipping methods.

A: Our factory is located in Ningbo, Zhejiang Province of China. The nearest airport is Ningbo Lishe International airport. We can pick you up from it.

A: More than 15 years. We have our own technology develop department and testing department.

A: We have much experience for exporting. And there is no problem about your customs clearance.

A: Installation is not included with our products. Because our products are designed to be easy to install, we provide installation videos and installation manuals, and will provide product installation instructions.

A: We are a Chinese brand and our products are self-produced and self-marketed, there are no distributors or branches in other countries.

A: We do not have a minimum order requirement, but for orders under $5000, we will charge a small order fee of $200.
